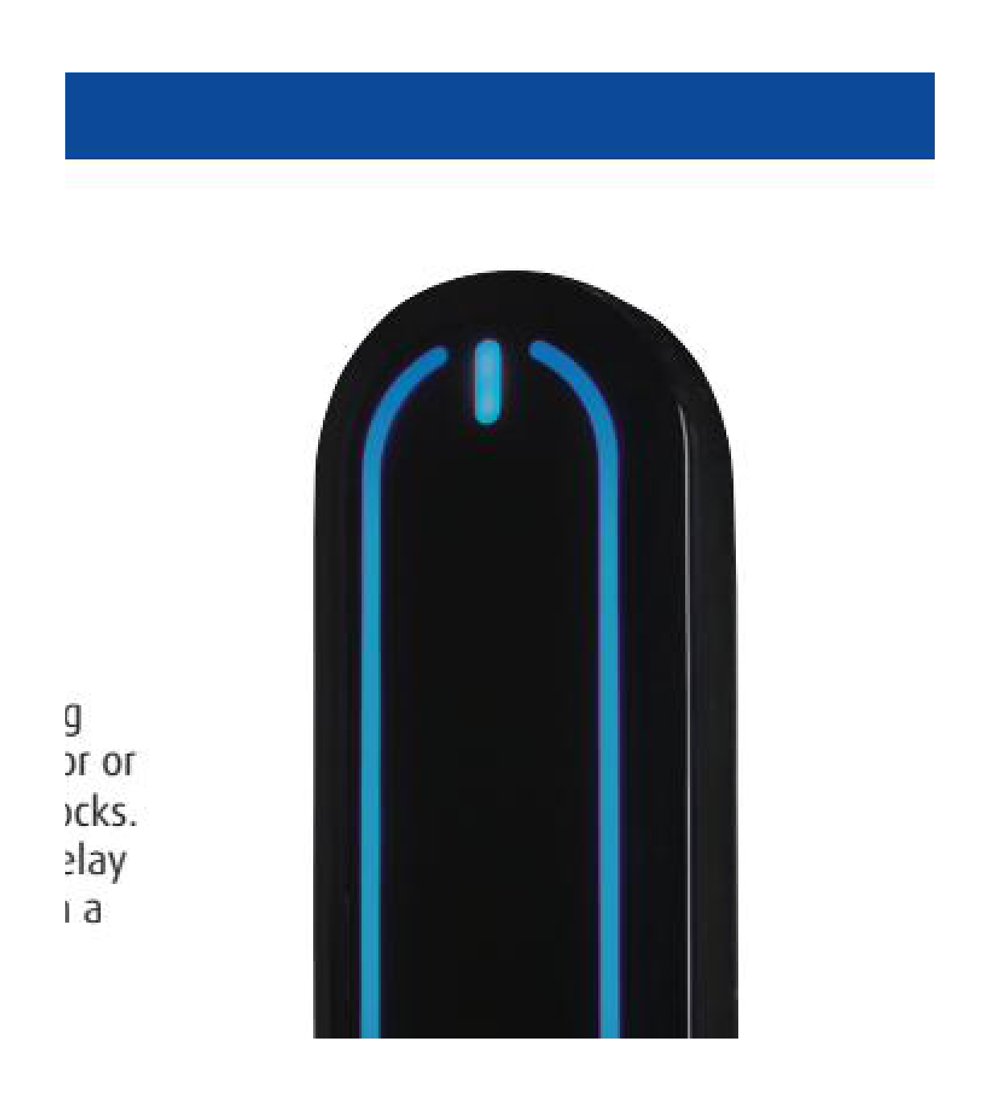

Onity Connected Wall Reader with Bluetooth

Control your property with an Onity RFID/Bluetooth low-energy wall reader at perimeter doors, elevators, parking areas, swimming pools, fitness facilities and other common areas. Suitable for interior or exterior use, the wall reader is programmable like all Onity locks. For elevators, it can be configured with relay expansion boards to enable access to multiple floors or zones from a single reader.

Wall readers allow only authorized card holders to gain access, and the audit trail retains up to the last 3,000 openings. The reader features Onity DirectKey mobile access technology for secure wireless credential communication from a guest smartphone via Bluetooth, so guests can access both their room and controlled areas such as gyms or pools.

Features

• Compatible with Onity Trillium, Trillium ADVANCE and Serene locking systems
• Mobile access-ready (BLE 5.1)
• Supports MIFARE Plus and MIFARE Ultralight C RFID
• ADA compliant with ADA opening timer
• IP65 rating for indoor and outdoor installation
• Security: AES128 and 3DES
• LED indication (RGB left/center/right)

Specifications

• RFID: MIFARE Plus, MIFARE Ultralight C · 13.56 MHz
• Connectivity: Bluetooth, BLE 5.1 (2.4 GHz)
• Surface-mount reader: 101 x 41 x 16 mm (3.98 x 1.58 x 0.63 in), requires Onity cover plate
• Mounting plates: small 119 x 74 mm; large 114 x 114 mm · plate finish: Satin Chrome, Black
• Reader trim finishes: Polished Brass, Satin Brass, Antique Brass, Satin Nickel, Polished Chrome, Satin Chrome, Black Chrome, Dark Bronze
• Power: 12–24 VDC supplied · standby consumption 50 mA
• Control unit: Serene relay board required; optional expansion relay boards (up to 16)
• Operating temperature: -30°C to +75°C (-22°F to +167°F)
• Compliance: ISO 14443A, BLE 5.1, RoHS, REACH · Certifications: FCC, ISED, CE, RCM, UKCA
• Warranty: 2 years

Applications

Common-area and perimeter access control: entrances, elevators, parking, pools, gyms and other shared facilities.

Ordering

Configured per project. SKUs include HAP5S-WRUN-PS12 and HAP5S-WRUN-PSNEMA12 (wall reader kits with power supply), PT400100 (wall reader), plus Serene smart relay and relay expansion boards. Request a quote or contact our team.
